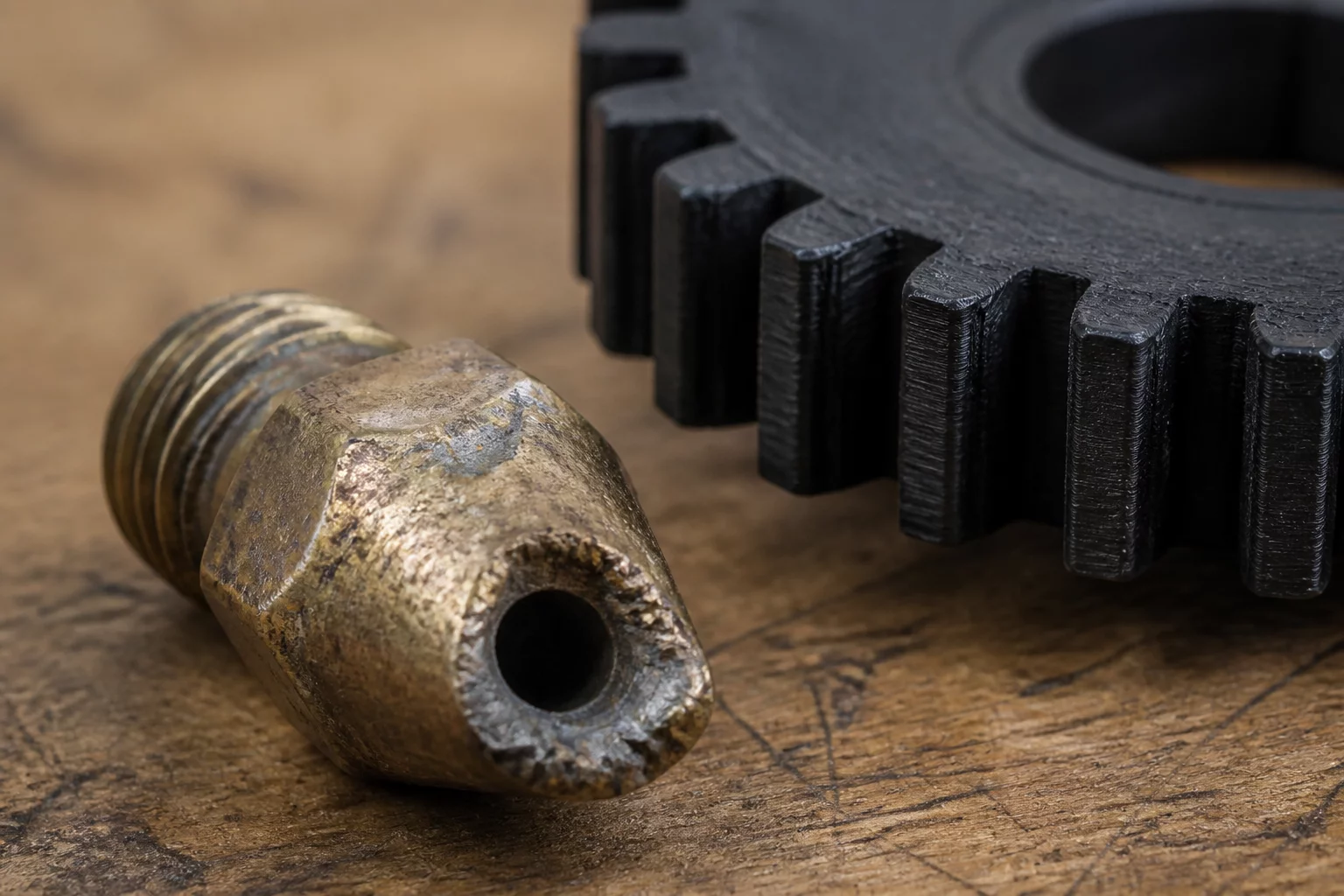

Carbon Fiber Wear Context

Carbon fiber infused filaments cause severe abrasive wear on standard brass 3D printer nozzles, leading to rapid orifice expansion and a subsequent drop in print quality. Because carbon fibers are significantly harder than brass, they act as an internal abrasive during the extrusion process. This trial report documents the physical degradation, flow rate instability, and surface finish changes observed over a continuous 100-hour test run.

Nozzle Diameter Expansion and Flow Deviation

Over the course of the test, we monitored the physical state of a standard 0.4mm brass nozzle. The orifice diameter expanded from its nominal 0.4mm to approximately 0.58mm after extruding only 750 grams of carbon fiber reinforced PETG. This enlargement leads to a significant decrease in backpressure inside the hotend. Consequently, the slicer's volumetric flow calculations become inaccurate, causing over-extrusion, layer inconsistency, and structural weaknesses in the final printed part.

Visual and Structural Surface Quality Degradation

As the nozzle wears down, the tip also becomes shorter and loses its flat shape. This flat portion is responsible for ironing and smoothing the extruded plastic layers. Without it, the outer walls of the print display extreme roughness, visible scarring, and poor layer-to-layer adhesion. In addition to aesthetic defects, the parts exhibit a measurable loss in tensile strength along the Z-axis, as the uneven extrusion pressure prevents proper layer bonding.

Mitigation Strategies and Material Selection

To prevent premature nozzle wear, engineering teams should transition from brass to wear-resistant alternatives. Hardened steel, tungsten carbide, or ruby-tipped nozzles are highly recommended for abrasives. While hardened steel has slightly lower thermal conductivity than brass, it extends the nozzle lifespan by several hundred hours under similar wear conditions, maintaining a stable extrusion diameter and consistent part accuracy.
